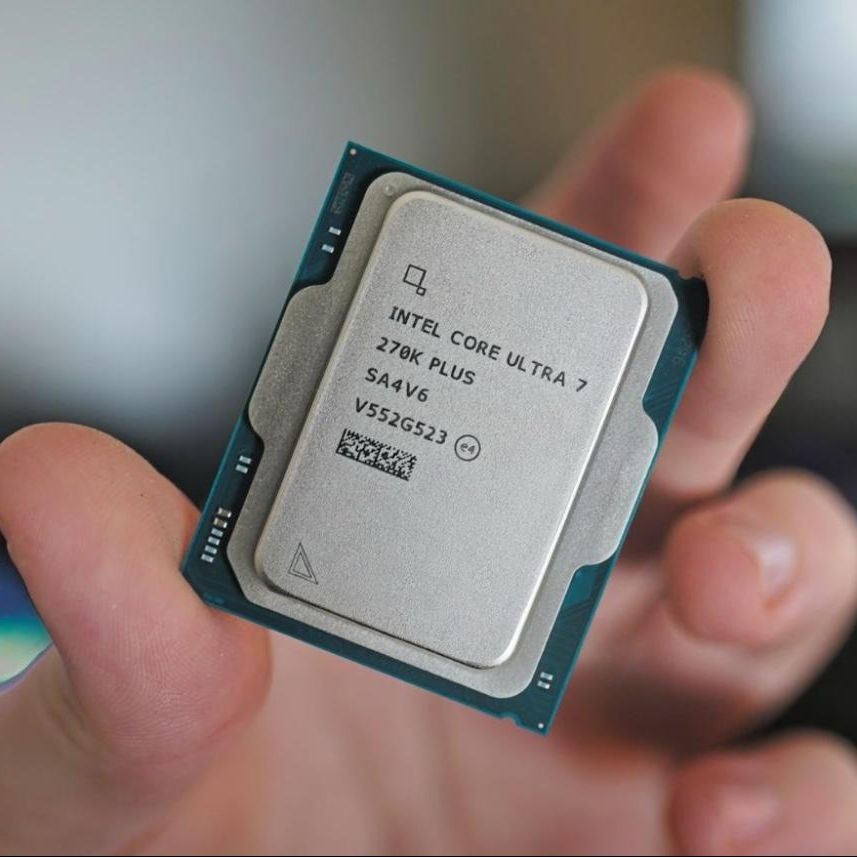

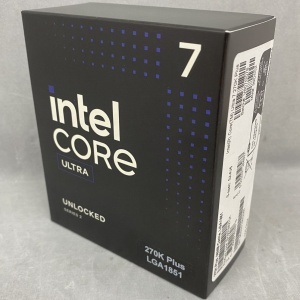

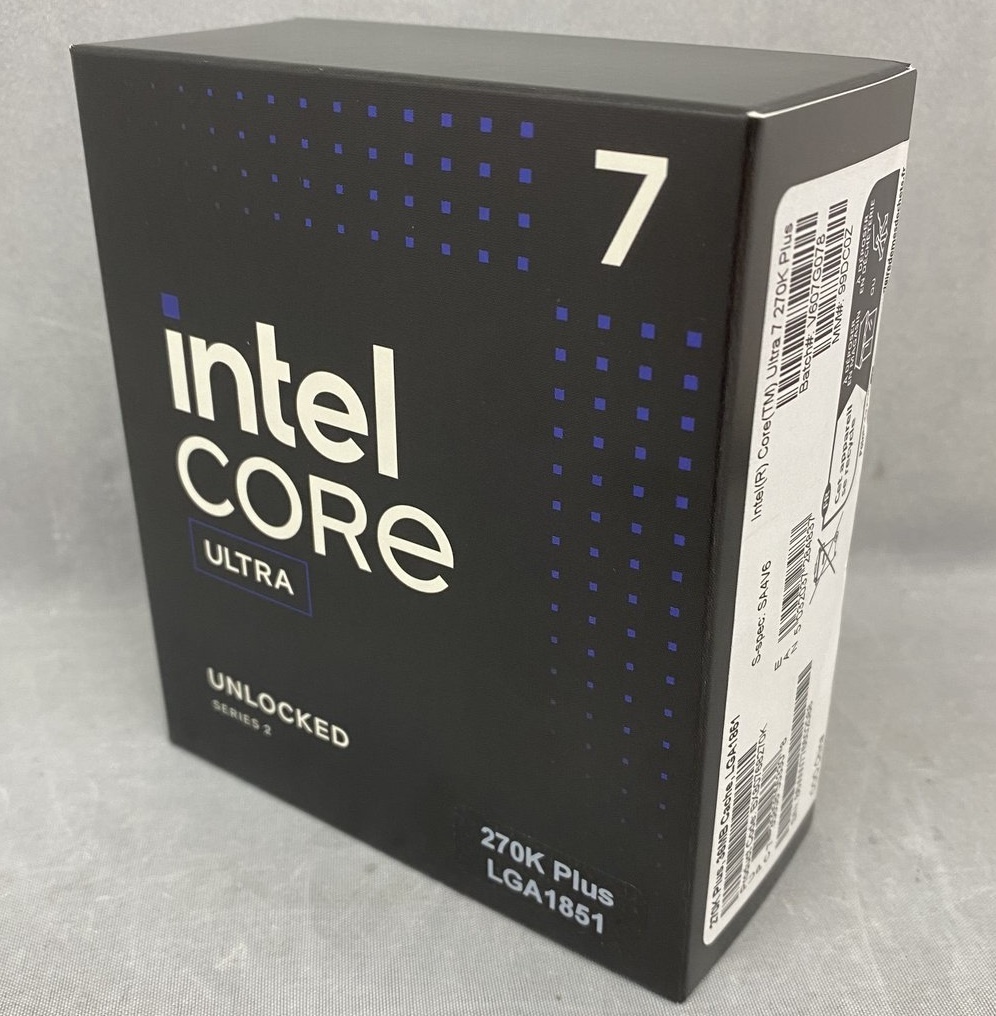

CPU INTEL CORE ULTRA 7 270K Plus, 5.5 GHz, 24C/24T, 40MB, 250W, LGA 1851, Box (BX80768270K)
Opis
Garancija 3 godine.
Only support boards with Intel 800 series chipsets !!!
Intel® Core™ Ultra 7 processor 270K Plus (36M Cache- up to 5.50 GHz)
Essentials
Product Collection Intel® Core™ Ultra Processors (Series 2)
Code Name Products formerly Arrow Lake
Vertical Segment Desktop
Processor Number 270K PLUS
Overall Peak TOPS (Int8) 36
CPU Specifications
Total Cores 24
# of Performance-cores 8
# of Efficient-cores 16
# of Low Power Efficient-cores 0
Total Threads 24
Max Turbo Frequency 5.5 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.5 GHz
Performance-core Max Turbo Frequency 5.4 GHz
Efficient-core Max Turbo Frequency 4.7 GHz
Performance-core Base Frequency 3.7 GHz
Efficient-core Base Frequency 3.2 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache 40 MB
Processor Base Power 125 W
Maximum Turbo Power 250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography TSMC N3B
Supplemental Information
Marketing Status Launched
Launch Date Q1'26
Embedded Options Available No
Use Conditions PC/Client/Tablet | Workstation
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 256 GB
Memory Types Up To DDR5 7200 MT/s
Max # of Memory Channels 2
ECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel® Graphics
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 2 GHz
GPU Peak TOPS (Int8) 8
Graphics Output eDP1.4b | DP 2.1 UHBR20 | HDMI 2.1 FRL
Xe-cores 4
Max Resolution (HDMI)‡ 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 3840 x 2400 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
Intel® Quick Sync Video Yes
# of Displays Supported ‡ 4
Device ID 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes
AI Software Frameworks Supported by GPU OpenVINO™ | WindowsML | DirectML | ONNX RT | WebGPU
NPU Specifications
NPU Name‡ Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Intel® Thunderbolt™ 4 Yes
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes 24
Package Specifications
Sockets Supported FCLGA1851
Thermal Solution Specification PCG 2020A
Max Operating Temperature 105 °C
Package Size 45 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.5
Intel® Thread Director Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
