COOLING VERSATILITY

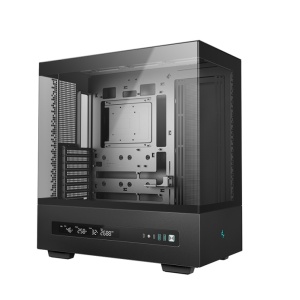

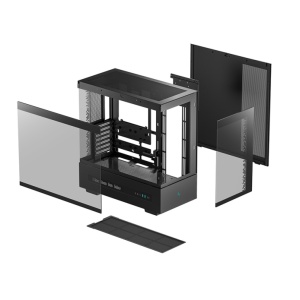

The CH690 DIGITAL is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel. It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud. Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear. With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL is engineered to maintain optimal temperatures for high-performance systems.
Radiator Support:
Top: 120/140/240/280/360/420mm
Side: 120/140/240/280mm
PSU Shrouded:120/240/360mm
Fan Support:
Top: 3×120 / 3×140mm
Side: 3×120 / 3×140mm
PSU Shrouded: 3×120 / 3×140mm
Rear: 1×120 / 1×140mm
CPU Cooler Support: Up to 182mm
| Product Dimensions | 481×240×516mm(L×W×H) |
| Net Weight | 9.8Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 8Slots |
| Pre-Installed Fans | None |
| Fan Support | Front:NA Top:3×120 / 3×140mm Side:3×120 / 3×140mm PSU Shrouded :3×120 / 3×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360/420mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit | 182mm |
| GPU Length Limit | 450mm |
| Power Supply Type | ATX PS2(maximum length: 180mm) |
| EAN | 6933412774037 |
| P/N | R-CH690-BKNNA0D-G-1 |
